Danyang Kaixin Alloy Material Co., Ltd.
1J22
product properties:

Brand: KX-Alloy

Similar grades: Hiperco 50,AFK502,Supermendur,1J22

Certification certificate: ISO9001:2015

Place of Origin: Danyang, Jiangsu, China

Product Description

Alloy category: Magnetically soft alloy

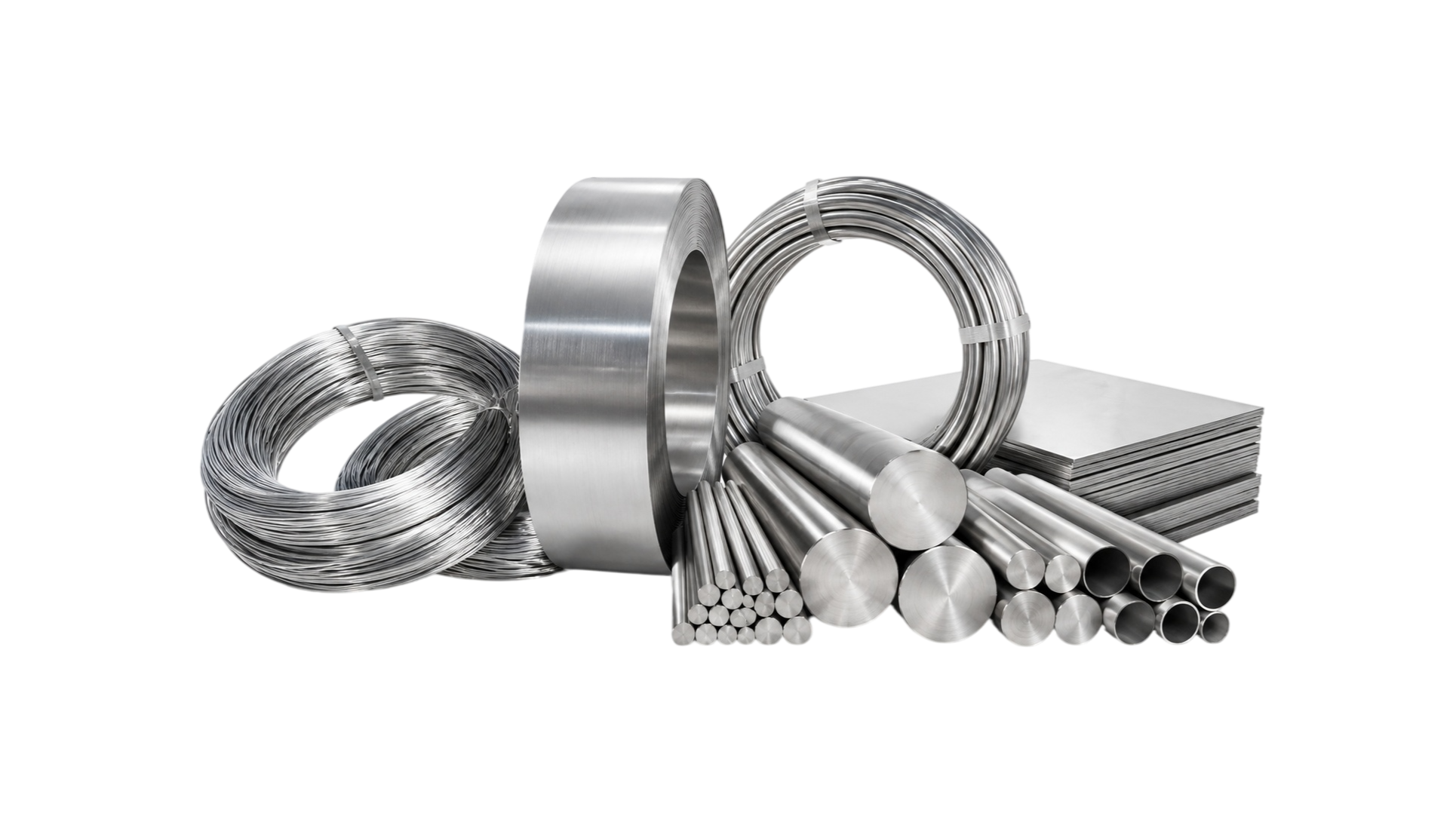

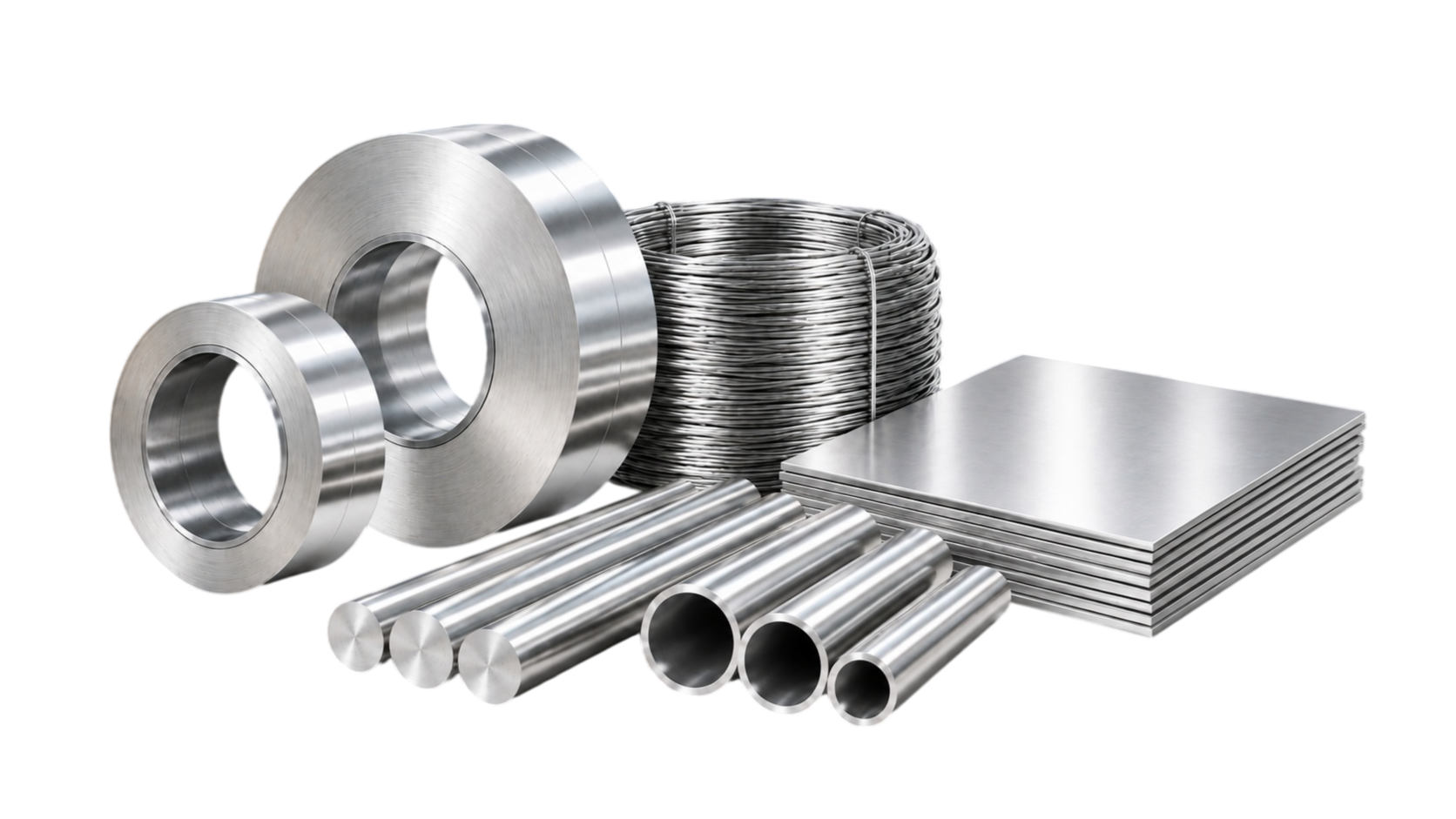

Substrate shape:wire/strip/bar/pipe/plate

Alloy series:nickalloy

Implementation standards: GB/T 14986-2008

Application fields: industrial field, aerospace

Product description and application

1J22 has high saturation magnetic induction intensity; It is suitable for the manufacture of aircraft and instrument components requiring small volume and light weight. Among the existing soft magnetic materials, the alloy has the highest saturation magnetic induction intensity (2.4T), the Curie point is also very high (980℃), and the saturation magnetostriction coefficient is the largest (60 ~ 100×10-6). Due to the high saturation magnetic induction intensity, when making a motor with the same power, the volume can be greatly reduced, and when making an electromagnet, a large suction force can be generated under the same cross-sectional area. Due to the high Curie point, the alloy can work at higher temperatures where other soft magnetic materials have been completely demagnetized, and maintain good magnetic stability.

1J22Composition content
Co:49.00%~51.00%
Fe:45.82%~49.82%
V:0.8%~1.8%
Ni≤0.5%
Mn≤0.30%
Si≤0.30%
Cu≤0.2%
C≤0.04%
S≤0.02%
P≤0.02%
Vacuum induction furnace
Electroslag remelting
Product physical properties
Density

ρ=8.2 g/cm³

Electrical resistivity

ρ=0.4 μΩ*m

Mechanical properties




Click to view more
Application scenario
